Finders

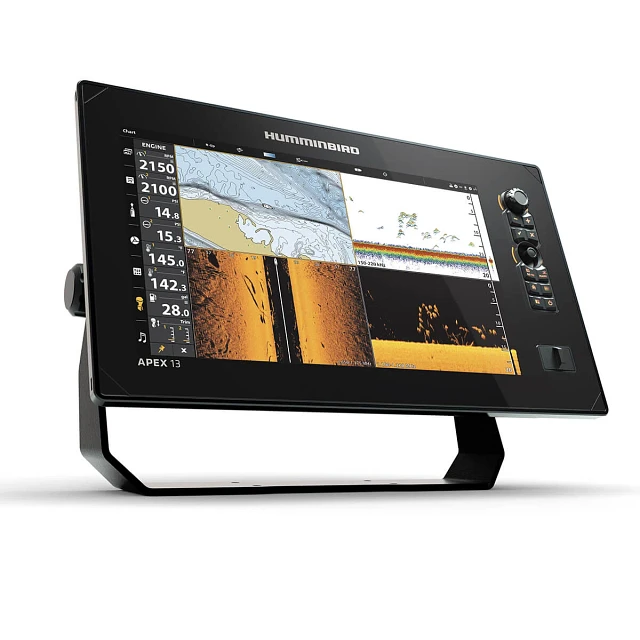

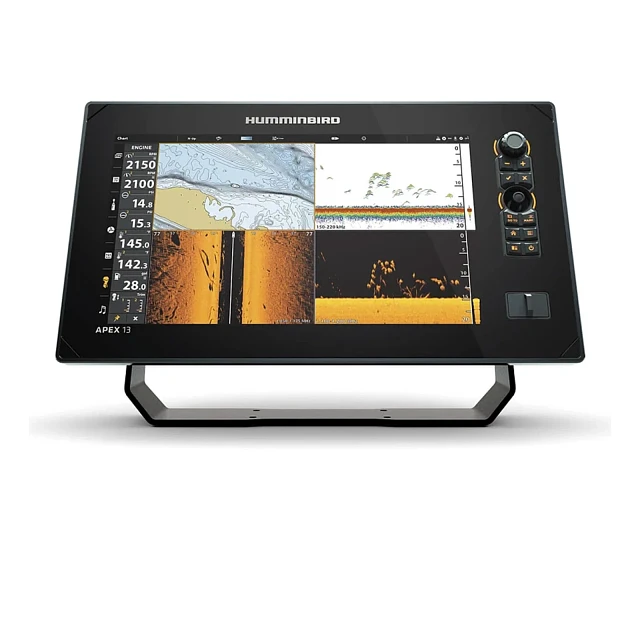

APEX
$4,299.99 – $5,299.99
Select options
This product has multiple variants. The options may be chosen on the product page
| Model | APEX 13 MEGA SI+ CHARTPLOTTER |
| Product Code | 411470-1 |
| Series | APEX |
| UPC | 0082324055324 |
| As shown MSRP |
$4,299.99
|
| Display Size - Diagonal | 13.3 in |
| Length | 8.96 in | 22.76 cm |
| Height | 15.6 in | 39.62 cm |
| Width | 5.67 in | 14.4 cm |
| Weight | 8 lb 4.8 oz | 3.76482 kg |
| Display Pixel Matrix | 1920H x 1080V |
| Transducer Included | XM 14 HW MSI T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
| Features | Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
| Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
| Depth-Down Imaging | 250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz) |
| Interface | Touch Screen |
| Power Draw | 3.1 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 15.6 in W x 9.88 in H x 4.88 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 15.6 in W x 8.98 in H x 0.51 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| MEGA Live Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota Advanced GPS Navigation Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Heading Sensor GPS (NMEA 2000) Compatibility | Yes |
| NMEA2000 | Included |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | Yes |
| X-Press Menu System | No |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | Yes |
| Warranty | Two-Year Warranty |

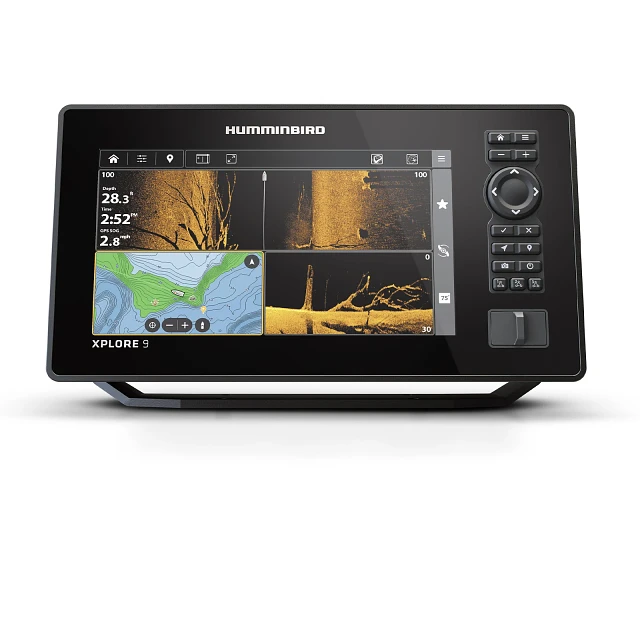

XPLORE
$1,499.99 – $2,699.99
Select options
This product has multiple variants. The options may be chosen on the product page
| Model | XPLORE 9 CMSI+ Fish Finder |
| Product Code | 412000-1 |
| Series | XPLORE |
| UPC | 0082324058653 |
| As shown MSRP |
$1,499.99
|
| Display Size - Diagonal | 9 in |
| Length | 11.69 in | 29.69 cm |
| Height | 6.26 in | 15.9 cm |
| Width | 3.3 in | 8.38 cm |
| Weight | 4 lb 4.48 oz | 1.94138 kg |
| Display Pixel Matrix | 1280 x 720 |
| Transducer Included | XM 14 HW CMSI T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2 |
| Features | Touch Screen, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Built In Mapping, MEGA Imaging+, Wi-Fi, MEGA Imaging |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
| Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz) |
| Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 400 ft (MEGA) |
| Interface | Touch Screen, Keypad Control |
| Power Draw | 2.2 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 11.690 in W x 6.569 in H x 3.884 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 6.259 in W x 11.69 in H x 3.3 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Not Supported |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| MEGA Live Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota Advanced GPS Navigation Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| Heading Sensor GPS (NMEA 2000) Compatibility | Yes |
| NMEA2000 | Included |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | Yes |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 24-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | Two-Year Warranty |

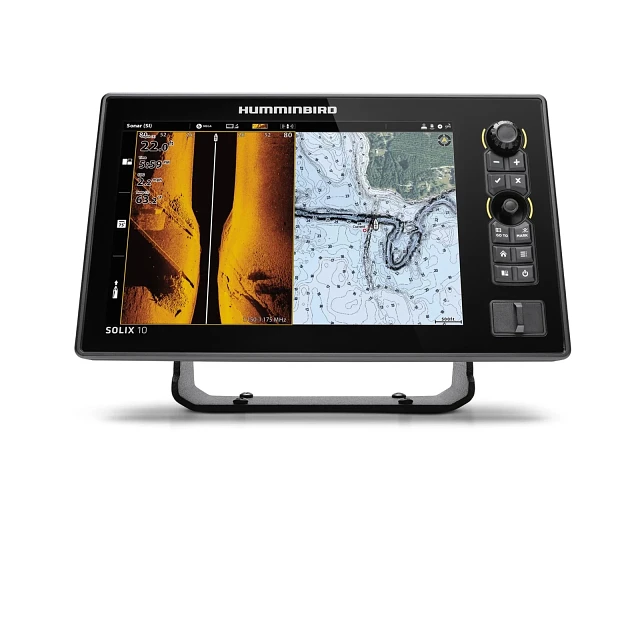

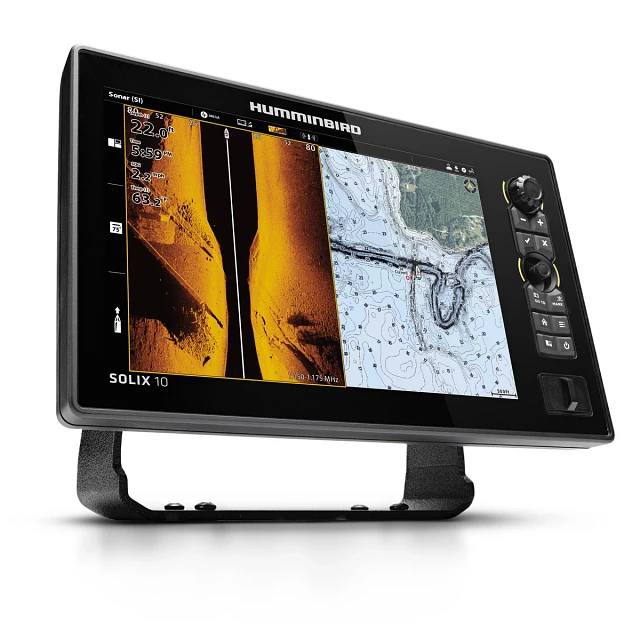

SOLIX G3
$2,699.99 – $3,699.99
Select options
This product has multiple variants. The options may be chosen on the product page
| Model | SOLIX 10 CHIRP MEGA SI+ G3 |
| Product Code | 411530-1 |
| Series | SOLIX |
| UPC | 0082324054914 |
| As shown MSRP |
$2,699.99
|
| Display Size - Diagonal | 10.1 in |
| Display Pixel Matrix | 1280H x 800V |
| Transducer Included | XM 14 HW MSI T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
| Features | Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
| Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
| Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA) |
| Interface | Touch Screen |
| Power Draw | 2.5 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 11.81 in W x 7.89 in H x 4.78 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 11.81 in W x 7.06 in H x 1.2 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| MEGA Live Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Included |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | No |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | Two-Year Warranty |

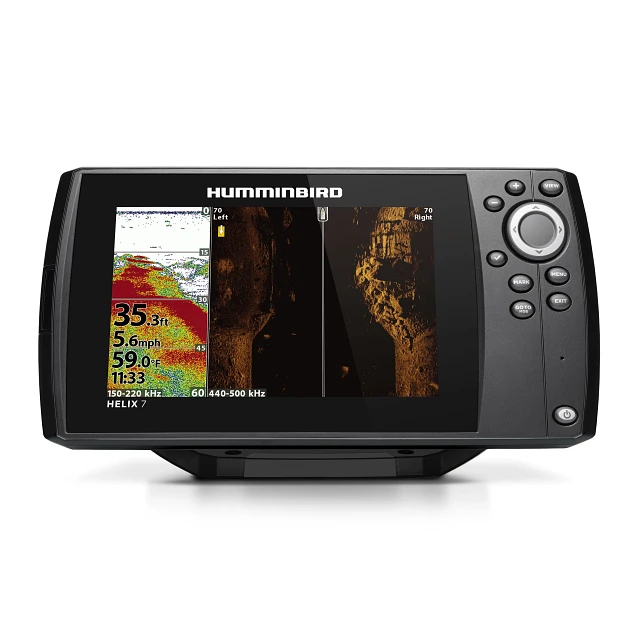

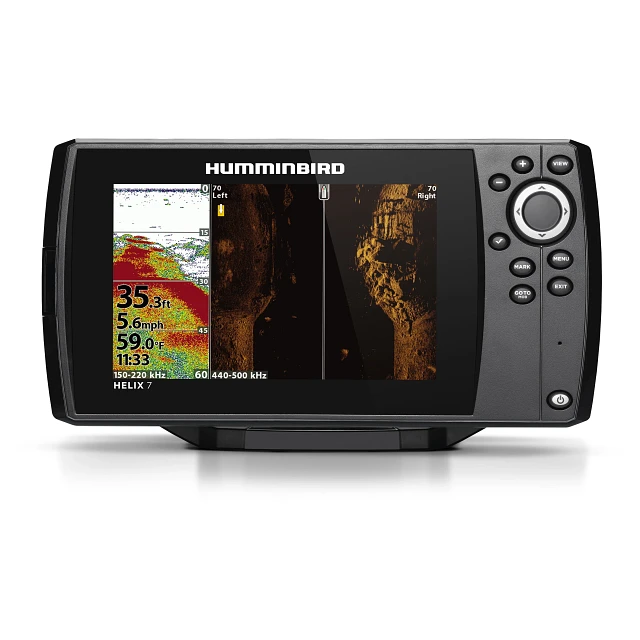

HELIX 7 SI GPS G4
$549.99
| Model | HELIX 7 SI GPS G4 |
| Product Code | 411920-1 |
| Series | HELIX |
| UPC | 0082324058288 |
| As shown MSRP |
$549.99
|
| Display Size - Diagonal | 7 in |
| Length | 3.06 in | 7.77 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 1.6 oz | 952.54 g |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW SI T |
| Compatible With | Minn Kota US2 Sonar, AIS, AutoPilot |
| Features | Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 53 kHz, 50/Low Airmar CHIRP |
| Live Sonar-Coverage | 20 degrees x 120 degrees |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455 kHz |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz (420-520 kHz) |
| Depth-Down Imaging | 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz) |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54 in W x 5.8 in H x 3.68 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54 in W x 5.44 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 45, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Interference Rejection | 6 Modes |
| Noise Rejection | 6 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

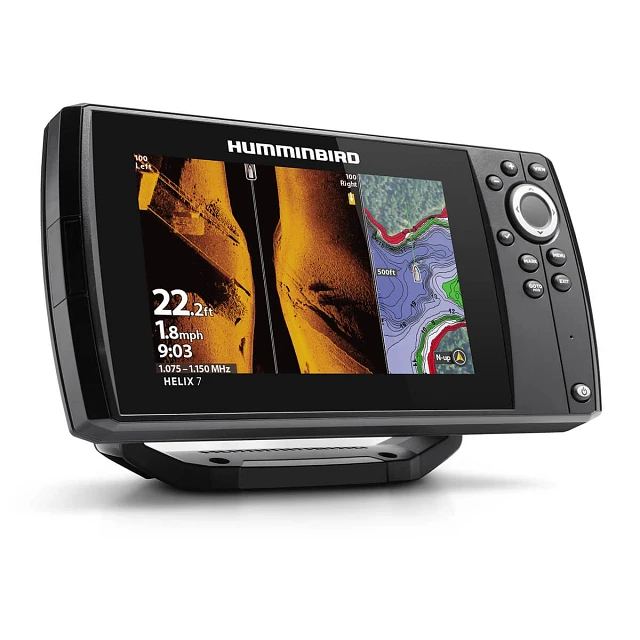

HELIX 7 MSI GPS G4
$749.99
| Model | HELIX 7 MSI GPS G4 |
| Product Code | 411930-1 |
| Series | HELIX |
| UPC | 0082324058295 |
| As shown MSRP |
$749.99
|
| Display Size - Diagonal | 7 in |
| Length | 3.06 in | 7.77 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 1.6 oz | 952.54 g |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MSI 150 T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot |
| Features | Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 53 kHz, 50/Low Airmar CHIRP |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz & 1.2 MHz |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz) |
| Depth-Down Imaging | 75 ft (MEGA), 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (MEGA) |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54 in W x 5.8 in H x 3.68 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54 in W x 5.44 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Interference Rejection | 6 Modes |
| Noise Rejection | 6 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

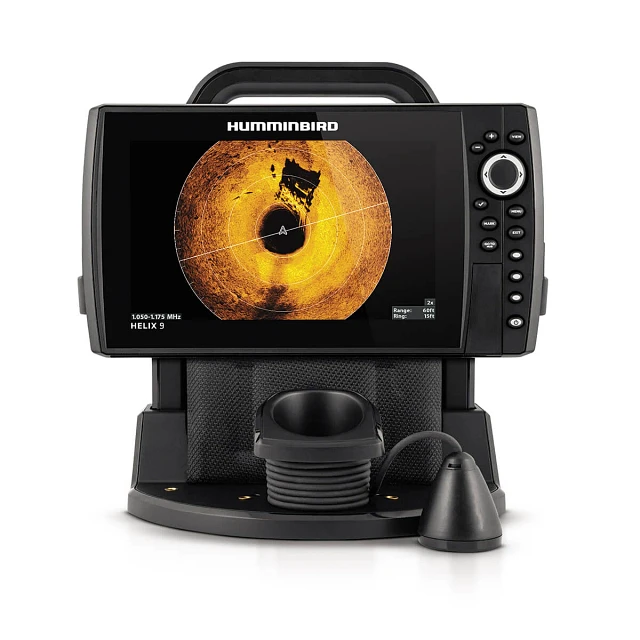

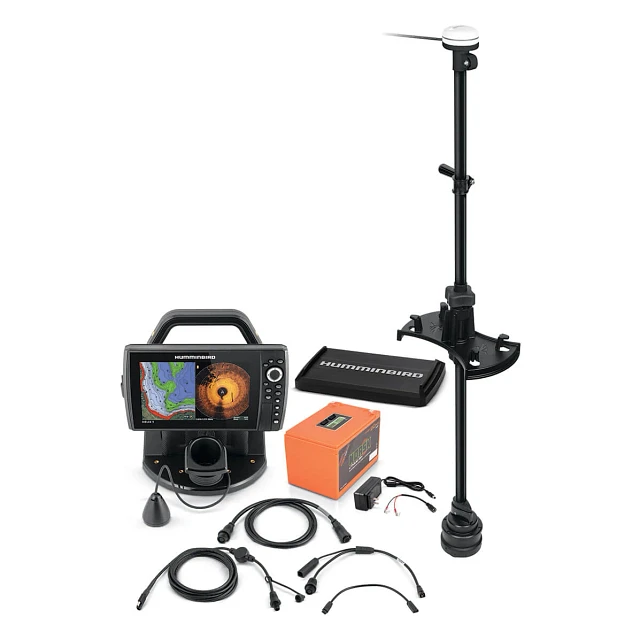

ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle
$1,999.99
| Model | ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle |
| Product Code | 411790-1 |
| Series | ICE |
| UPC | 0082324056789 |
| As shown MSRP |
$1,999.99
|
| Display Size - Diagonal | 9 in |
| Length | 8.5 in | 21.59 cm |
| Height | 68.25 in | 173.35 cm |
| Width | 17.5 in | 44.45 cm |
| Weight | 35 lb | 15.8757 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | MEGA 360 Imaging - No Mount, XI 9 1521 |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
| Features | Jig Charge Mode, MEGA Live Imaging, Built In GPS, Bluetooth, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, MEGA Imaging+, Interference Rejection |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
| Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA) |
| Interface | Keypad Control |
| Power Draw | 2.4 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | Yes |
| MEGA Live Compatibility | Yes |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | Yes |
| Minn Kota Talon Shallow Water Anchor Compatibility | Yes |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Included |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 14.8V 20 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | Yes |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | Two-Year Warranty |

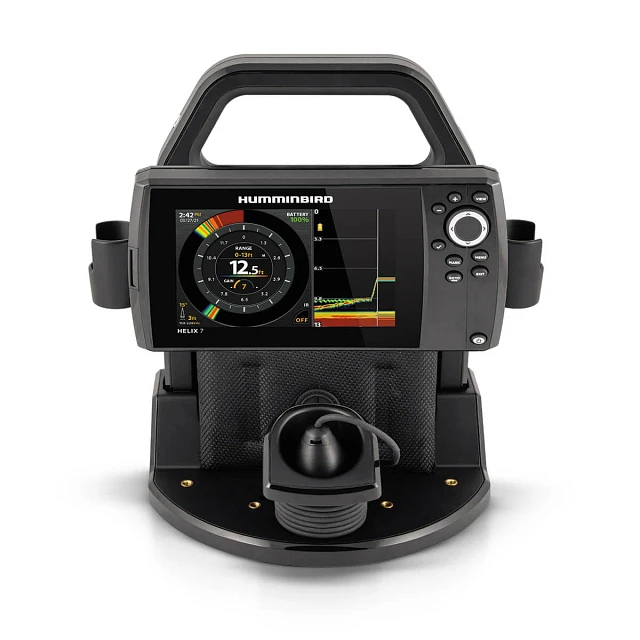

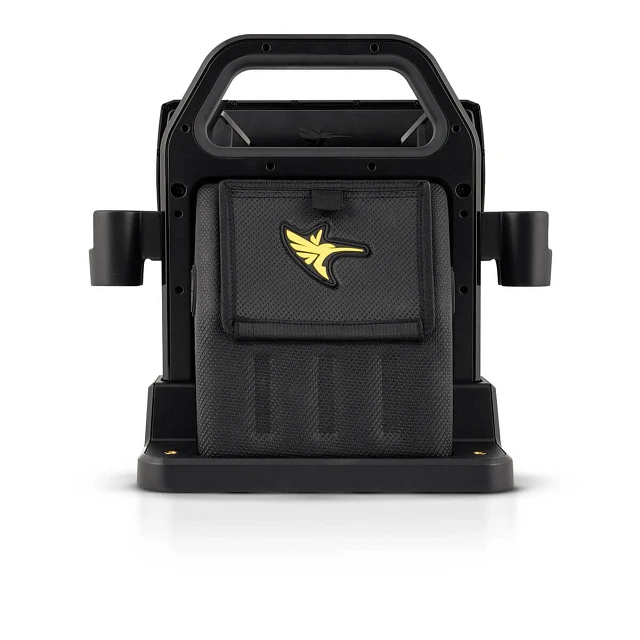

ICE HELIX 7 CHIRP GPS G4
$949.99
| Model | ICE HELIX 7 CHIRP GPS G4 |
| Product Code | 411750-1 |
| Series | ICE |
| UPC | 0082324056741 |
| Display Size - Diagonal | 7 in |
| Length | 4.5 in | 11.43 cm |
| Height | 14 in | 35.56 cm |
| Width | 17 in | 43.18 cm |
| Weight | 5 lb 9.6 oz | 2.54012 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XI 9 1521 |
| Compatible With | AIS, AutoPilot |
| Features | Jig Charge Mode, Built In GPS, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, Interference Rejection |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 15° & 21° @ -3dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 400 ft |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 11.1V 15 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

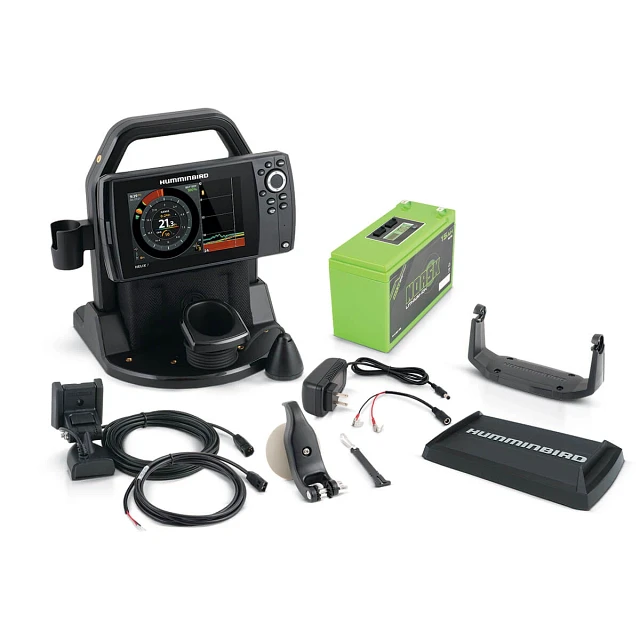

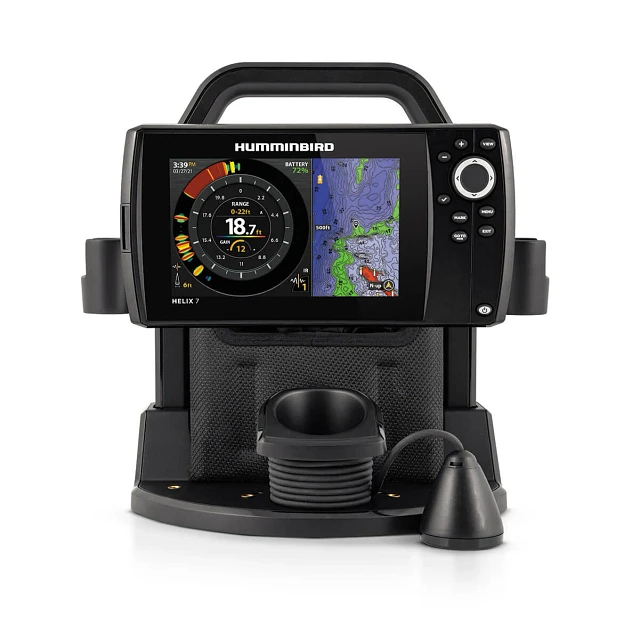

ICE HELIX 7 CHIRP GPS G4 All Season
$1,049.99
| Model | ICE HELIX 7 CHIRP GPS G4 All Season |
| Product Code | 411760-1 |
| Series | ICE |
| UPC | 0082324056758 |
| As shown MSRP |
$1,049.99
|
| Display Size - Diagonal | 7 in |
| Length | 4.5 in | 11.43 cm |
| Height | 14 in | 35.56 cm |
| Width | 17 in | 43.18 cm |
| Weight | 5 lb 11.2 oz | 2.58548 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW T, XI 9 1521 |
| Compatible With | AIS, AutoPilot |
| Features | Jig Charge Mode, Built In GPS, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, Interference Rejection |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 15° & 21° @ -3dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 400 ft |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 11.1V 15 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

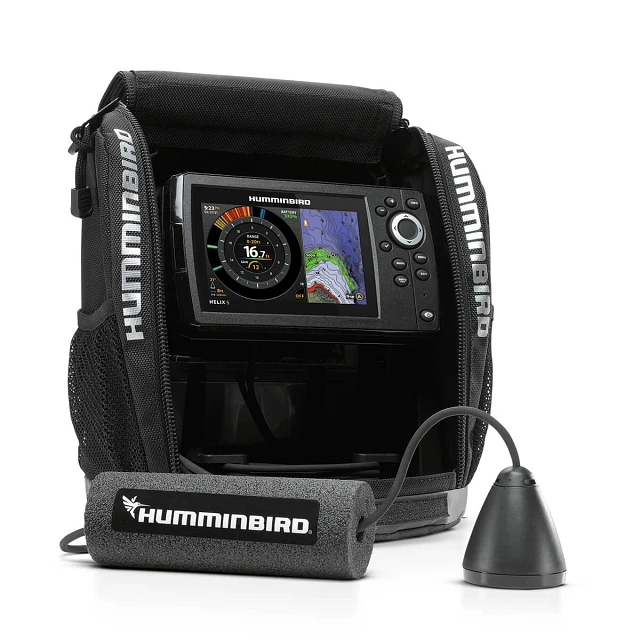

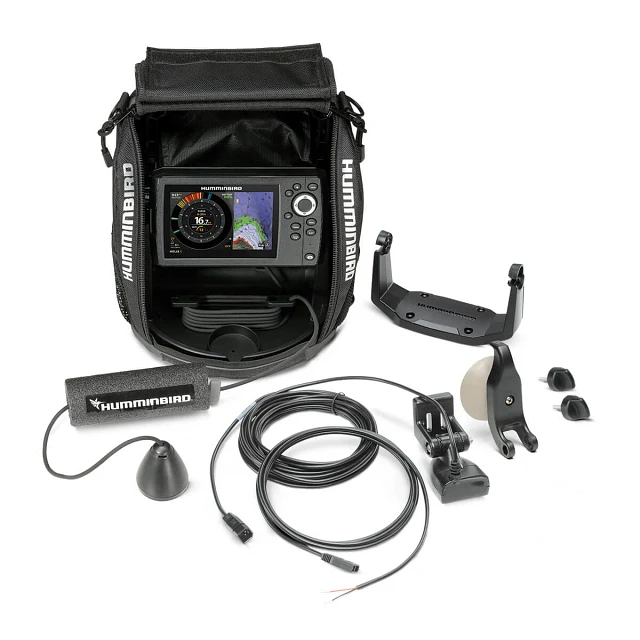

ICE HELIX 5 CHIRP GPS G3 All Season
$619.99
| Model | ICE HELIX 5 CHIRP GPS G3 All Season |
| Product Code | 411740-1 |
| Series | ICE |
| UPC | 0082324056734 |
| As shown MSRP |
$619.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.75 in | 12.06 cm |
| Height | 9.63 in | 24.46 cm |
| Width | 15.75 in | 40.01 cm |
| Weight | 3 lb 9.6 oz | 1.63293 kg |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW T, XI 9 1521 |
| Features | Jig Charge Mode, Built In GPS, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, Interference Rejection |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 15° & 21° @ -3dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 400 ft |
| Interface | Keypad Control |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Not Supported |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 12V 9 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 256 Color |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

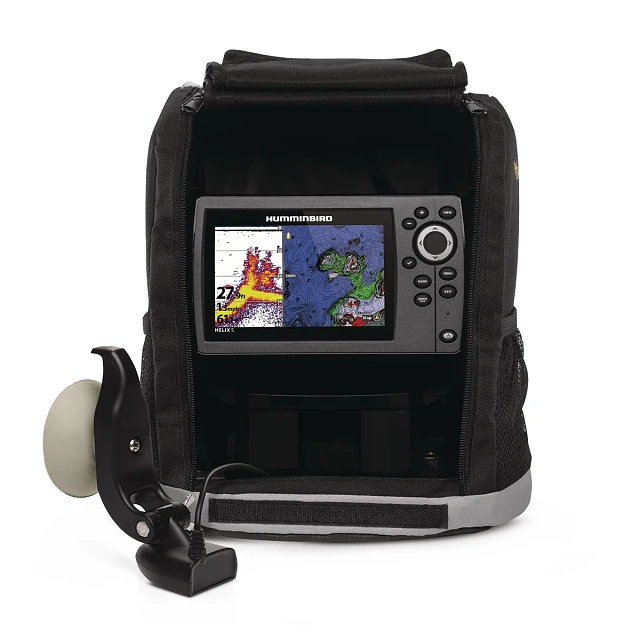

HELIX 5 CHIRP GPS G3 PT
$469.99
| Model | HELIX 5 CHIRP GPS G3 PT |
| Product Code | 411680-1 |
| Series | HELIX |
| UPC | 0082324056314 |
| As shown MSRP |
$469.99
|
| Display Size - Diagonal | 5 in |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW T |
| Compatible With | Minn Kota US2 Sonar, AIS, AutoPilot |
| Features | Built In GPS, Dual Spectrum CHIRP, Portable, Built In Mapping |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 20°, 42° & 60° @ -10dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 3,000 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| Interface | Keypad Control |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 7.55 in W x 4.28 in H x 1.13 in D |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 45, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Not Supported |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Noise Rejection | 6 Steps |
| Battery Included | 12V 7 Amp Hours |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
ICE HELIX 5 CHIRP G3
$419.99
| Model | ICE HELIX 5 CHIRP G3 |
| Product Code | 411720-1 |
| Series | ICE |
| UPC | 0082324056710 |
| As shown MSRP |
$419.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.75 in | 12.06 cm |
| Height | 9.63 in | 24.46 cm |
| Width | 15.75 in | 40.01 cm |
| Weight | 3 lb 9.6 oz | 1.63293 kg |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XI 9 1521 |

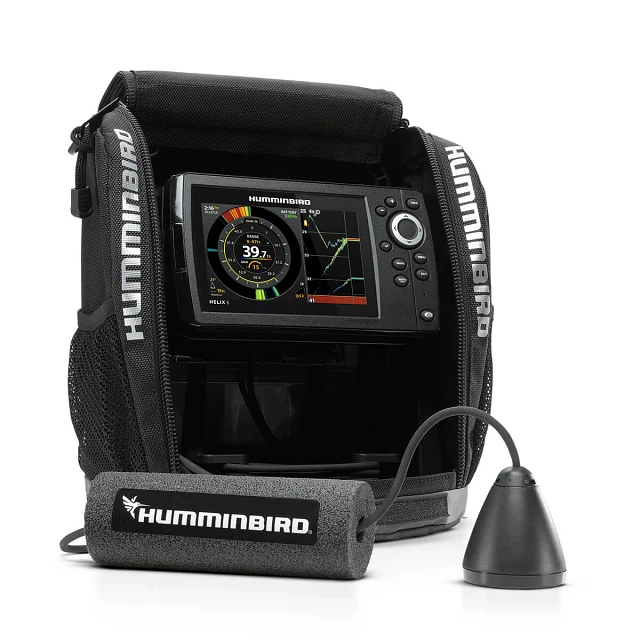

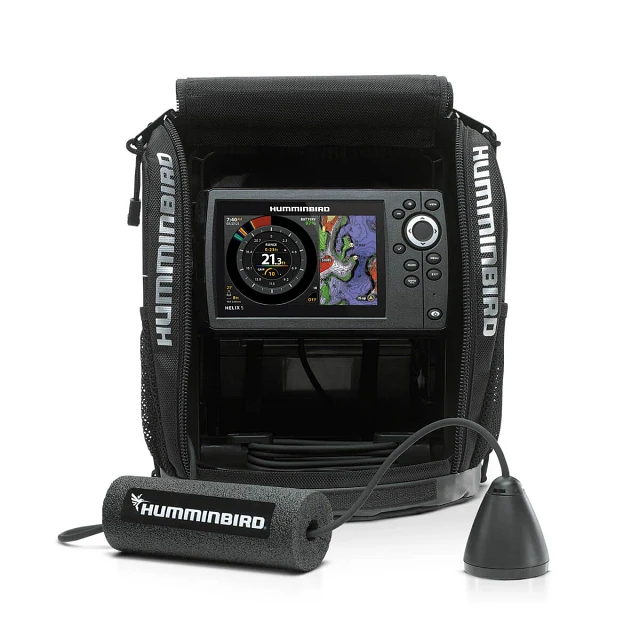

ICE HELIX 5 CHIRP GPS G3
$519.99
| Model | ICE HELIX 5 CHIRP GPS G3 |
| Product Code | 411730-1 |
| Series | ICE |
| UPC | 0082324056703 |
| As shown MSRP |
$519.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.75 in | 12.06 cm |
| Height | 9.63 in | 24.46 cm |
| Width | 15.75 in | 40.01 cm |
| Weight | 3 lb 9.6 oz | 1.63293 kg |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XI 9 1521 |
| Features | Jig Charge Mode, Built In GPS, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, Interference Rejection |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 15° & 21° @ -3dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 400 ft |
| Interface | Keypad Control |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Not Supported |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 12V 9 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 256 Color |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |

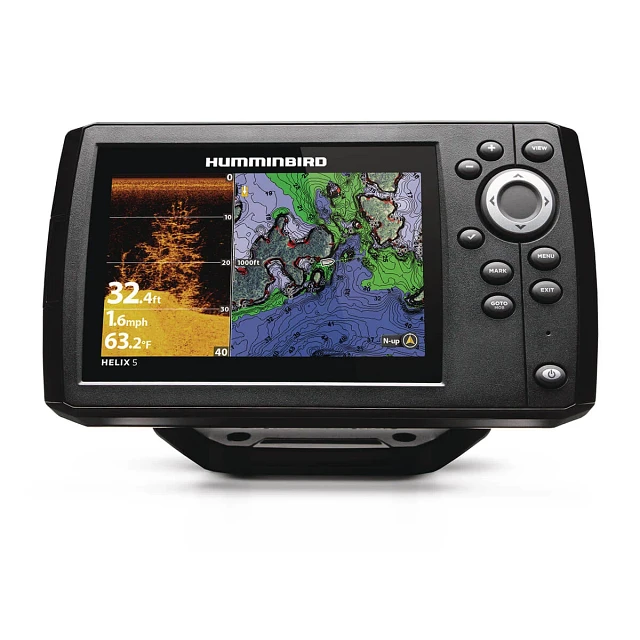

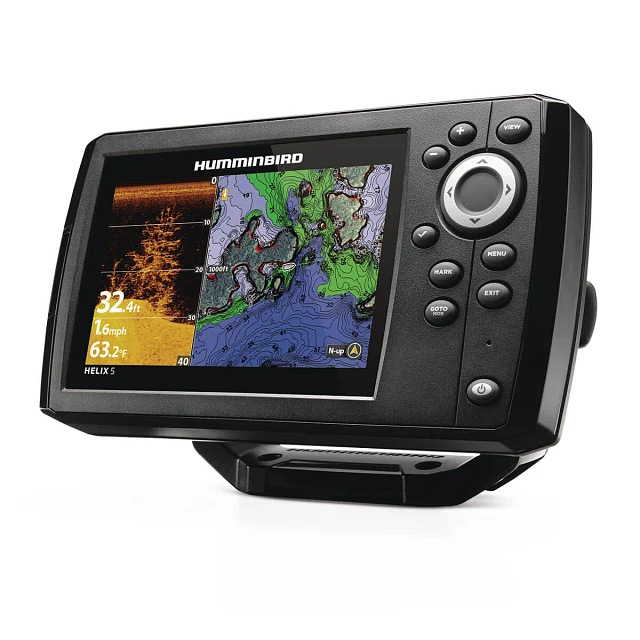

HELIX 5 CHIRP DI GPS G3
$369.99
| Model | HELIX 5 CHIRP DI GPS G3 |
| Product Code | 411670-1 |
| Series | HELIX |
| UPC | 0082324056321 |
| As shown MSRP |
$369.99
|
| Display Size - Diagonal | 5 in |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW DI T |
| Compatible With | Minn Kota US2 Sonar, AIS, AutoPilot |
| Features | Down Imaging, Built In GPS, Dual Spectrum CHIRP, Built In Mapping |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, CHIRP Down Imaging |

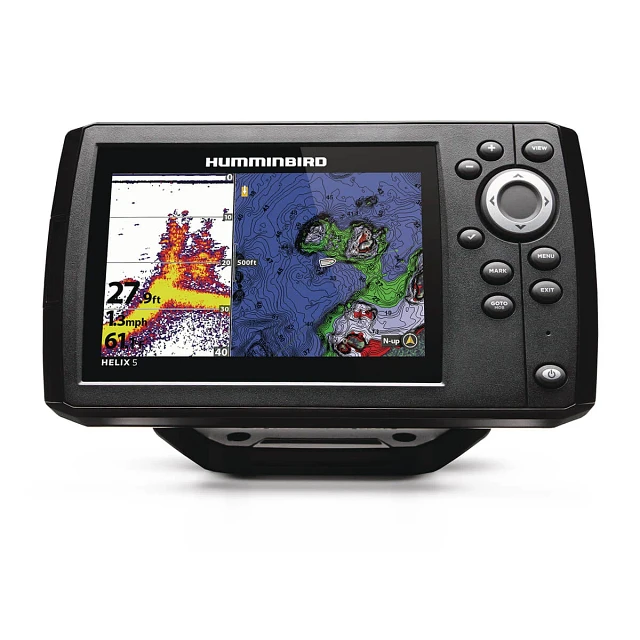

HELIX 5 CHIRP GPS G3
$319.99
| Model | HELIX 5 CHIRP GPS G3 |
| Product Code | 411660-1 |
| Series | HELIX |
| UPC | 0082324056291 |
| As shown MSRP |
$319.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.64 in | 11.79 cm |
| Height | 7.55 in | 19.18 cm |
| Width | 3.3 in | 8.38 cm |
| Weight | 2 lb 1.92 oz | 961.62 g |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW T |

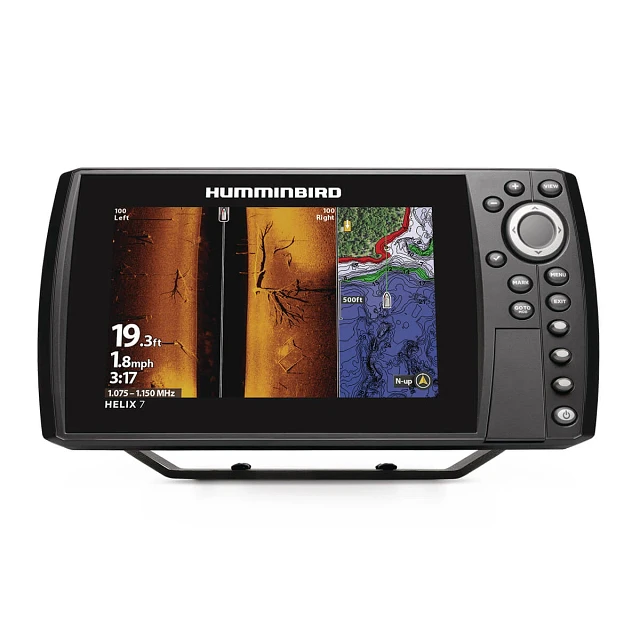

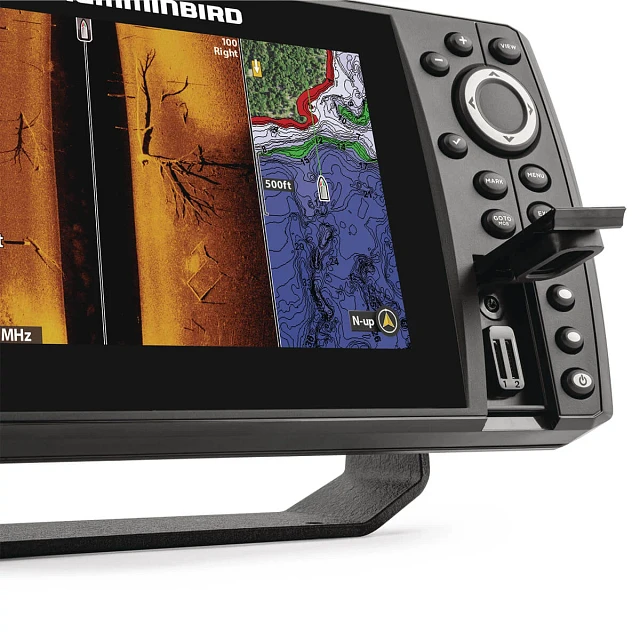

HELIX 7 CHIRP MEGA SI GPS G4N
$949.99
| Model | HELIX 7 CHIRP MEGA SI GPS G4N |
| Product Code | 411650-1 |
| Series | HELIX |
| UPC | 0082324056260 |
| As shown MSRP |
$949.99
|
| Display Size - Diagonal | 7 in |
| Length | 3.08 in | 7.82 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 6.4 oz | 1.08862 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MSI 150 T |

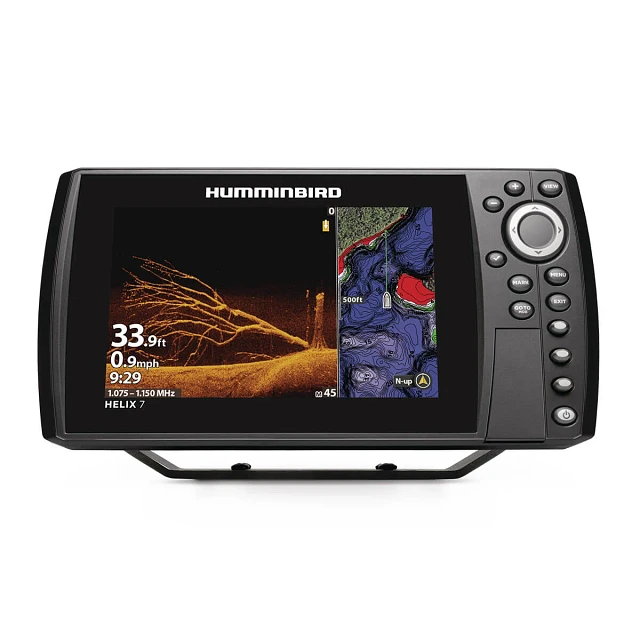

HELIX 7 CHIRP MEGA DI GPS G4N CHO
$699.99
| Model | HELIX 7 CHIRP MEGA DI GPS G4N CHO |
| Product Code | 411640-1CHO |
| Series | HELIX |
| UPC | 0082324056222 |
| As shown MSRP |
$699.99
|
| Display Size - Diagonal | 7 in |
| Length | 3.08 in | 7.82 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 6.4 oz | 1.08862 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included |
