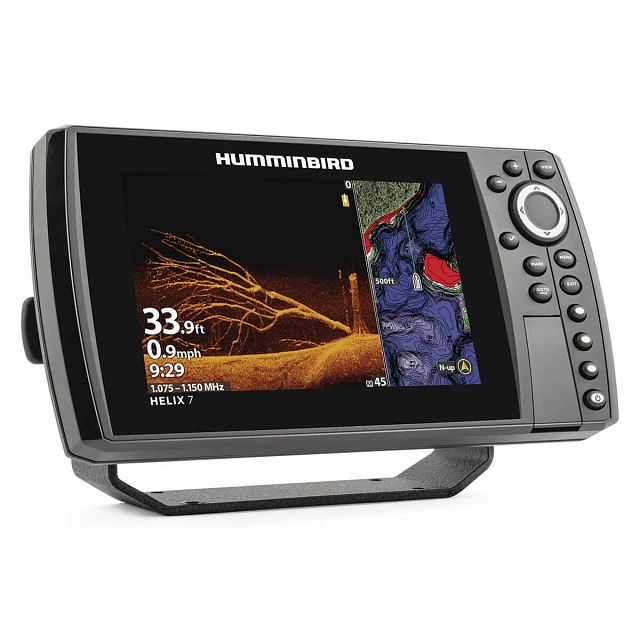

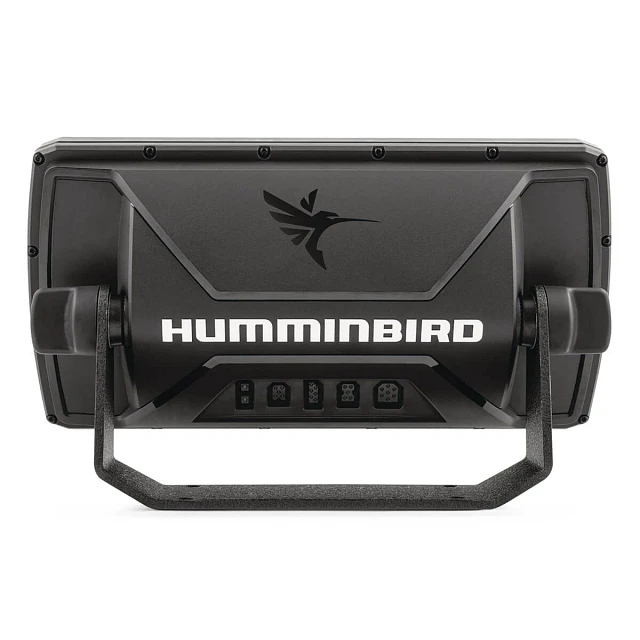

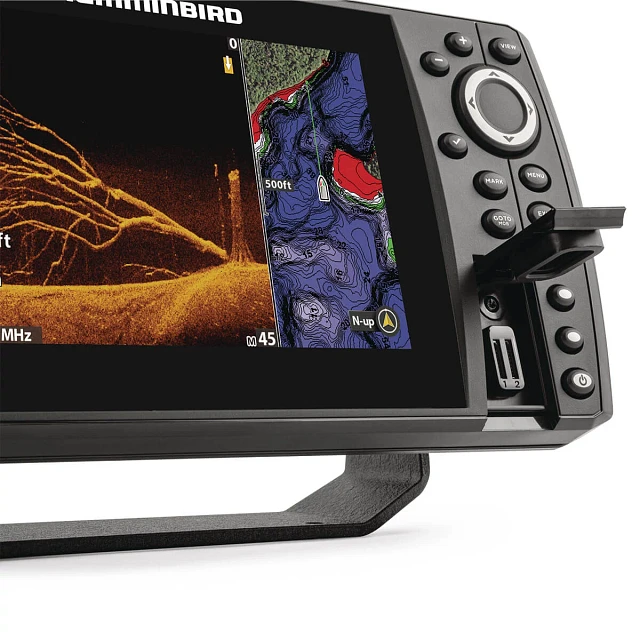

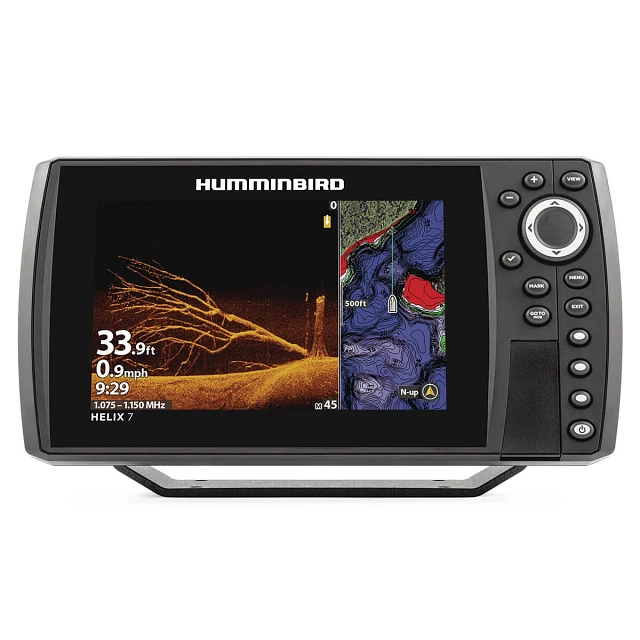

HELIX 7 CHIRP MEGA DI GPS G4N
$749.99
Description
| Model | HELIX 7 CHIRP MEGA DI GPS G4N |
| Product Code | 411640-1 |
| Series | HELIX |
| UPC | 0082324056239 |
| As shown MSRP |
$749.99
|
| Display Size – Diagonal | 7 in |
| Length | 3.08 in | 7.82 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 6.4 oz | 1.08862 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MDI 75 T |
Full Handmade
A high quality
Natural materials
Related Products
PiranhaMAX 4 PT
$199.99
| Model | PiranhaMAX 4 PT |
| Product Code | 410170-1 |
| Series | PiranhaMAX |
| UPC | 0082324048760 |
| As shown MSRP |
$199.99
|
| Display Size - Diagonal | 4.3 in |
| Display Pixel Matrix | 272H x 480V |
| Transducer Included | XPT 9 28 T |
| Features | Portable |
| Memory Card Slot | None |
| Sonar-Standard | Dual Beam |
| Sonar-Coverage | 28° & 16° @ -10dB |
| Sonar-Frequencies Supported | 200/455kHz |
| Depth-Sonar | 600 ft (20) 200 kHz, 320 ft (20) 455 kHz |
| Depth-Down Imaging | 320 ft |
| Interface | Keypad Control |
| Power Draw | 180 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 2400 Watts |
| Power Output RMS | 300 Watts |
| Screen Snap Shot | Not Supported |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 3.91 in W x 7.34 in H x 3.62 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 3.91 in W x 5.875 in H x 2.5 in D |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Not Supported |
| GPS Trackplotting | Not Supported |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| LakeMaster Compatibility | No |
| Platinum Compatibility | No |
| Target Separation | 2.5 in |
| Upgradable Software | No |
| Display Colors Grayscale | 256 Color |
| Display Type | Color TFT |
| Speed | Not Supported |
| Temperature | Built In |
| Warranty | One-Year Warranty |
HELIX 5 SONAR G2
$219.99
| Model | HELIX 5 SONAR G2 |
| Product Code | 410190-1 |
| Series | HELIX |
| UPC | 0082324048999 |
| As shown MSRP |
$219.99
|
| Display Size - Diagonal | 5 in |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 20 T |
| Compatible With | AIS, AutoPilot |
| Memory Card Slot | None |
| Sonar-Standard | DualBeam PLUS |
| Sonar-Coverage | 20° & 60° @ -10dB |
| Sonar-Frequencies Supported | 83/200 kHz |
| Depth-Sonar | 1,500 ft (standard transducer) |
| Interface | Keypad Control |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Not Supported |
| Sonar Recording | Not Supported |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 7.55 in W x 4.64 in H x 3.3 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 7.55 in W x 4.28 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Optional |
| GPS Trackplotting | Not Supported |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| LakeMaster Compatibility | No |
| CoastMaster Compatibility | No |
| Navionics Gold/HotMaps Compatibility | No |
| Navionics Platinum+ Compatibility | No |
| Platinum Compatibility | No |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Not Supported |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Optional |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
HELIX 7 CHIRP MEGA SI GPS G4N
$949.99
| Model | HELIX 7 CHIRP MEGA SI GPS G4N |
| Product Code | 411650-1 |
| Series | HELIX |
| UPC | 0082324056260 |
| As shown MSRP |
$949.99
|
| Display Size - Diagonal | 7 in |
| Length | 3.08 in | 7.82 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 6.4 oz | 1.08862 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MSI 150 T |
HELIX 5 CHIRP GPS G3
$319.99
| Model | HELIX 5 CHIRP GPS G3 |
| Product Code | 411660-1 |
| Series | HELIX |
| UPC | 0082324056291 |
| As shown MSRP |
$319.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.64 in | 11.79 cm |
| Height | 7.55 in | 19.18 cm |
| Width | 3.3 in | 8.38 cm |
| Weight | 2 lb 1.92 oz | 961.62 g |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW T |
ICE HELIX 5 CHIRP G3
$419.99
| Model | ICE HELIX 5 CHIRP G3 |
| Product Code | 411720-1 |
| Series | ICE |
| UPC | 0082324056710 |
| As shown MSRP |
$419.99
|
| Display Size - Diagonal | 5 in |
| Length | 4.75 in | 12.06 cm |
| Height | 9.63 in | 24.46 cm |
| Width | 15.75 in | 40.01 cm |
| Weight | 3 lb 9.6 oz | 1.63293 kg |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XI 9 1521 |
