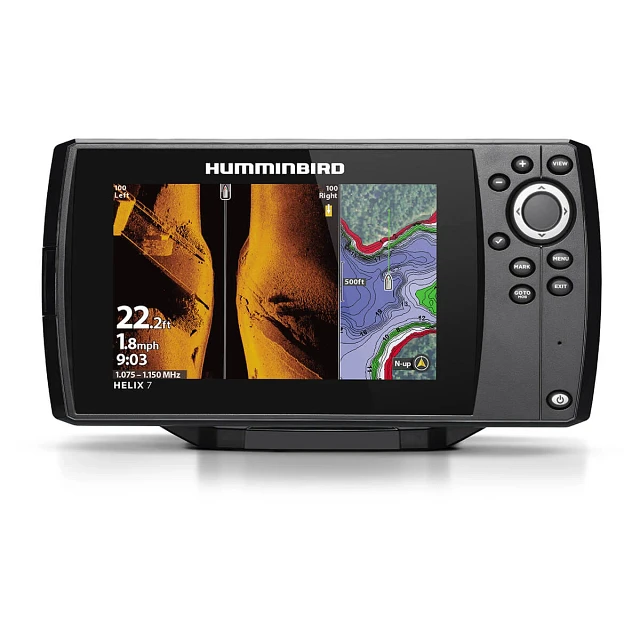

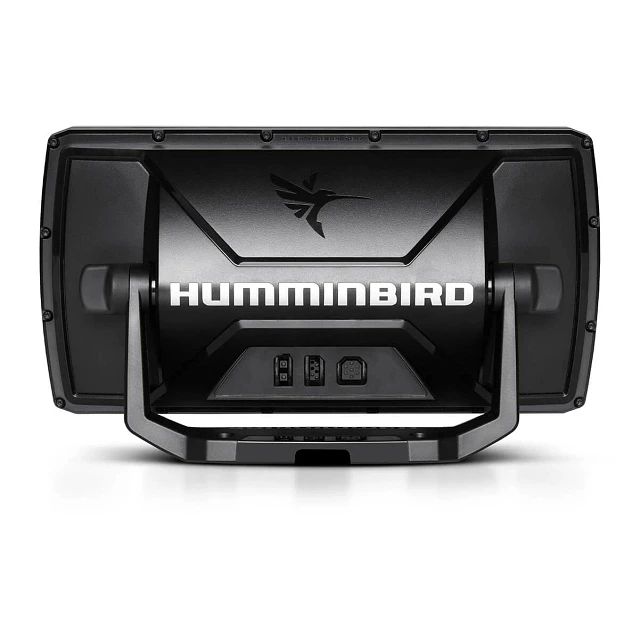

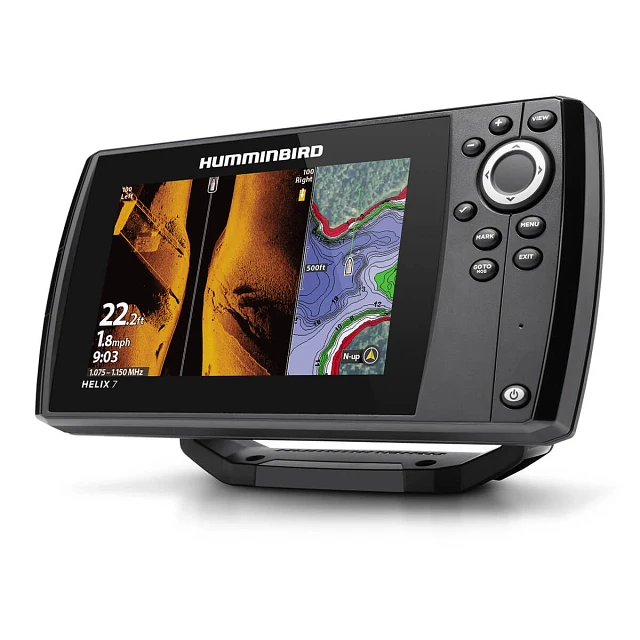

HELIX 7 MSI GPS G4
$749.99
Description
| Model | HELIX 7 MSI GPS G4 |
| Product Code | 411930-1 |
| Series | HELIX |
| UPC | 0082324058295 |
| As shown MSRP |
$749.99
|
| Display Size – Diagonal | 7 in |
| Length | 3.06 in | 7.77 cm |
| Height | 5.44 in | 13.82 cm |
| Width | 10.54 in | 26.77 cm |
| Weight | 2 lb 1.6 oz | 952.54 g |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW MSI 150 T |
| Compatible With | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot |
| Features | Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 53 kHz, 50/Low Airmar CHIRP |
| CHIRP – Frequencies Supported | Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz & 1.2 MHz |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP – Imaging Frequencies Supported | 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz) |
| Depth-Down Imaging | 75 ft (MEGA), 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (MEGA) |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.54 in W x 5.8 in H x 3.68 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 10.54 in W x 5.44 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Interference Rejection | 6 Modes |
| Noise Rejection | 6 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
Full Handmade
A high quality
Natural materials
Related Products
ICE 55 Flasher
$599.99
| Model | ICE 55 Flasher |
| Product Code | 407040-1 |
| Series | ICE |
| UPC | 0082324032110 |
| As shown MSRP |
$599.99
|
| Transducer Included | XI 9 19 |
| Memory Card Slot | None |
| Sonar-Standard | Selectable Dual Frequency |
| Sonar-Coverage | 19° & 9° @ -3dB |
| Interface | Keypad Control |
| Power Draw | 250 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 2400 Watts |
| Power Output RMS | 300 Watts |
| Screen Snap Shot | Not Supported |
| Sonar Recording | Not Supported |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Not Supported |
| GPS Trackplotting | Not Supported |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| CoastMaster Compatibility | No |
| Navionics Gold/HotMaps Compatibility | No |
| Navionics Platinum+ Compatibility | No |
| Platinum Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| Target Separation | 2.5 in |
| Noise Rejection | 10 Steps |
| Battery Included | 12V 9 Amp Hours |
| Gain | 50 Steps |
| Upgradable Software | No |
| View Preset Keys | No |
| X-Press Menu System | No |
| Display Colors Grayscale | 6-Color |
| Display Type | 526 Segment, 6-color fiber optic LCD Center |
| Speed | Not Supported |
| Temperature | Not Supported |
| Temperature Alarm | No |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | Two-Year Warranty |

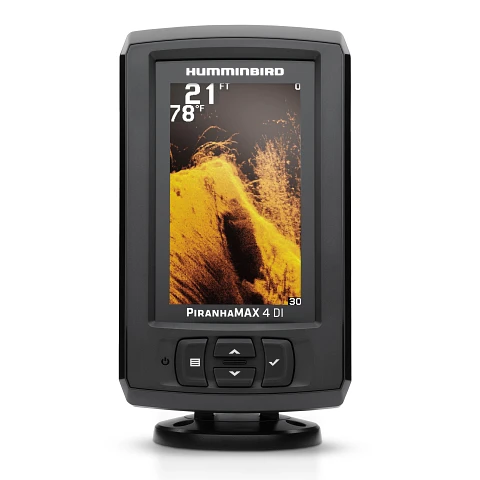

PiranhaMAX 4 DI
