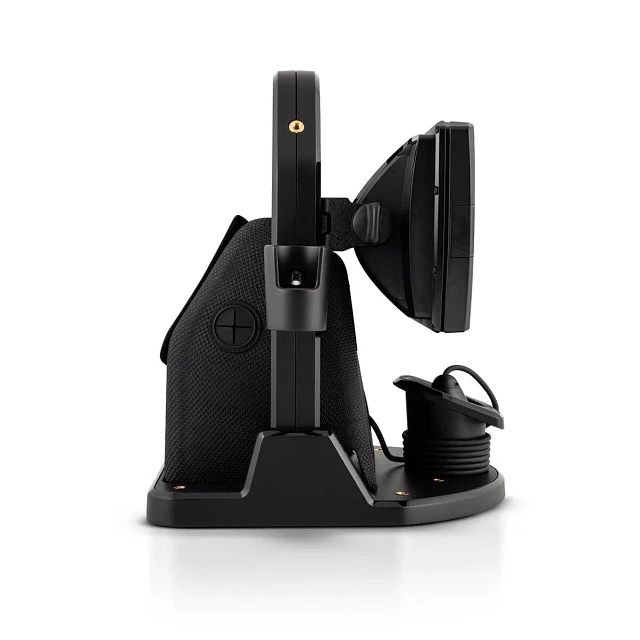

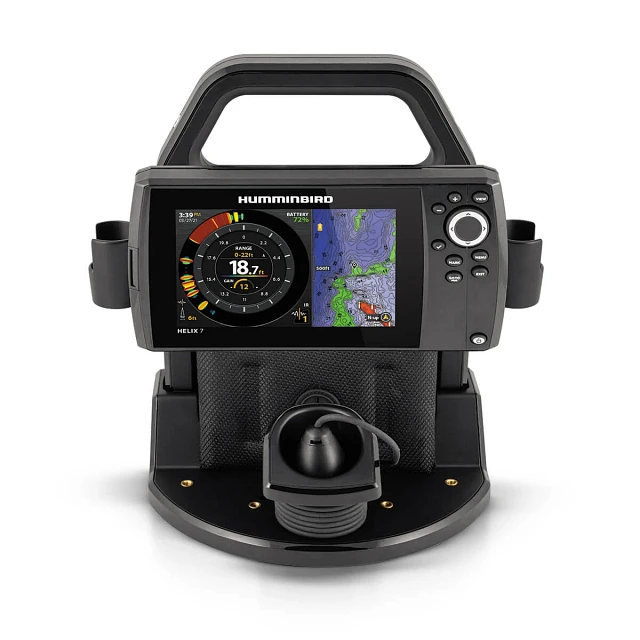

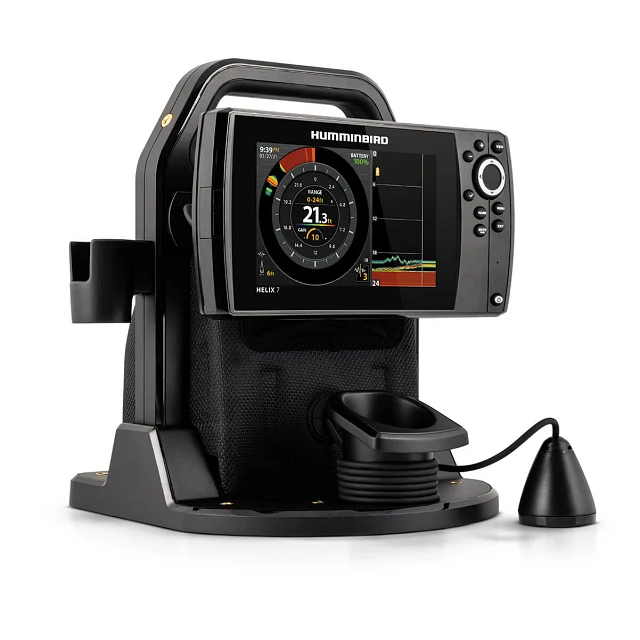

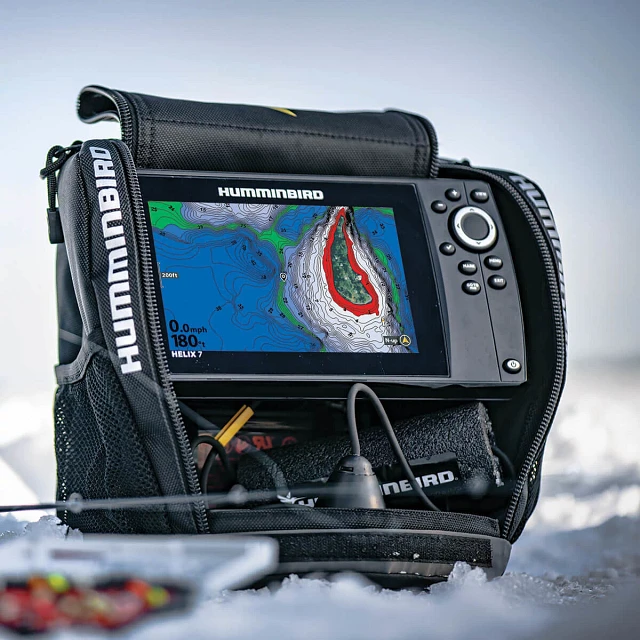

ICE HELIX 7 CHIRP GPS G4 All Season
$1,049.99
Description
| Model | ICE HELIX 7 CHIRP GPS G4 All Season |
| Product Code | 411760-1 |
| Series | ICE |
| UPC | 0082324056758 |
| As shown MSRP |
$1,049.99
|
| Display Size – Diagonal | 7 in |
| Length | 4.5 in | 11.43 cm |
| Height | 14 in | 35.56 cm |
| Width | 17 in | 43.18 cm |
| Weight | 5 lb 11.2 oz | 2.58548 kg |
| Display Pixel Matrix | 1024H x 600V |
| Transducer Included | XNT 9 HW T, XI 9 1521 |
| Compatible With | AIS, AutoPilot |
| Features | Jig Charge Mode, Built In GPS, AutoChart Live Ice, Dual Spectrum CHIRP, Portable, Built In Mapping, Interference Rejection |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 15° & 21° @ -3dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP – Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 400 ft |
| Interface | Keypad Control |
| Power Draw | 800 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,500, 47, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| NMEA2000 | Not Supported |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Battery Included | 11.1V 15 Amp Hours |
| Gain | 20 Steps |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Display Colors Grayscale | 16-Bit |
| Display Type | LCD |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
Full Handmade
A high quality
Natural materials
Related Products
ICE 55 Flasher
$599.99
| Model | ICE 55 Flasher |
| Product Code | 407040-1 |
| Series | ICE |
| UPC | 0082324032110 |
| As shown MSRP |
$599.99
|
| Transducer Included | XI 9 19 |
| Memory Card Slot | None |
| Sonar-Standard | Selectable Dual Frequency |
| Sonar-Coverage | 19° & 9° @ -3dB |
| Interface | Keypad Control |
| Power Draw | 250 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 2400 Watts |
| Power Output RMS | 300 Watts |
| Screen Snap Shot | Not Supported |
| Sonar Recording | Not Supported |
| Mount-Standard | Portable |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Not Supported |
| GPS Trackplotting | Not Supported |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| CoastMaster Compatibility | No |
| Navionics Gold/HotMaps Compatibility | No |
| Navionics Platinum+ Compatibility | No |
| Platinum Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| Target Separation | 2.5 in |
| Noise Rejection | 10 Steps |
| Battery Included | 12V 9 Amp Hours |
| Gain | 50 Steps |
| Upgradable Software | No |
| View Preset Keys | No |
| X-Press Menu System | No |
| Display Colors Grayscale | 6-Color |
| Display Type | 526 Segment, 6-color fiber optic LCD Center |
| Speed | Not Supported |
| Temperature | Not Supported |
| Temperature Alarm | No |
| Temperature Graph | No |
| HDMI Compatible | No |
| Warranty | Two-Year Warranty |

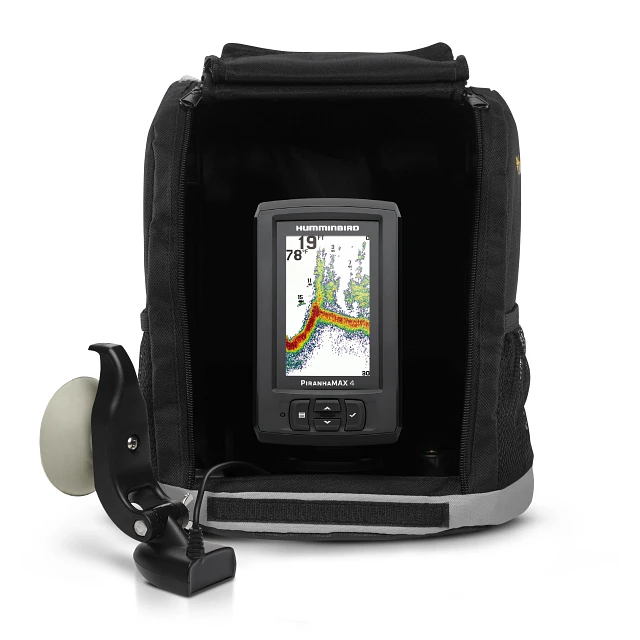

PiranhaMAX 4 PT
$199.99
| Model | PiranhaMAX 4 PT |
| Product Code | 410170-1 |
| Series | PiranhaMAX |
| UPC | 0082324048760 |
| As shown MSRP |
$199.99
|
| Display Size - Diagonal | 4.3 in |
| Display Pixel Matrix | 272H x 480V |
| Transducer Included | XPT 9 28 T |
| Features | Portable |
| Memory Card Slot | None |
| Sonar-Standard | Dual Beam |
| Sonar-Coverage | 28° & 16° @ -10dB |
| Sonar-Frequencies Supported | 200/455kHz |
| Depth-Sonar | 600 ft (20) 200 kHz, 320 ft (20) 455 kHz |
| Depth-Down Imaging | 320 ft |
| Interface | Keypad Control |
| Power Draw | 180 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 2400 Watts |
| Power Output RMS | 300 Watts |
| Screen Snap Shot | Not Supported |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 3.91 in W x 7.34 in H x 3.62 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 3.91 in W x 5.875 in H x 2.5 in D |
| Transducer Mount Location | Portable |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Not Supported |
| GPS Trackplotting | Not Supported |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| LakeMaster Compatibility | No |
| Platinum Compatibility | No |
| Target Separation | 2.5 in |
| Upgradable Software | No |
| Display Colors Grayscale | 256 Color |
| Display Type | Color TFT |
| Speed | Not Supported |
| Temperature | Built In |
| Warranty | One-Year Warranty |

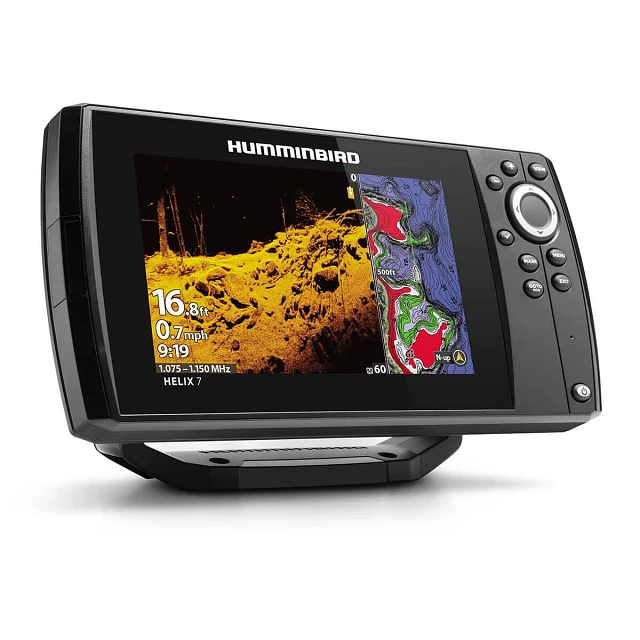

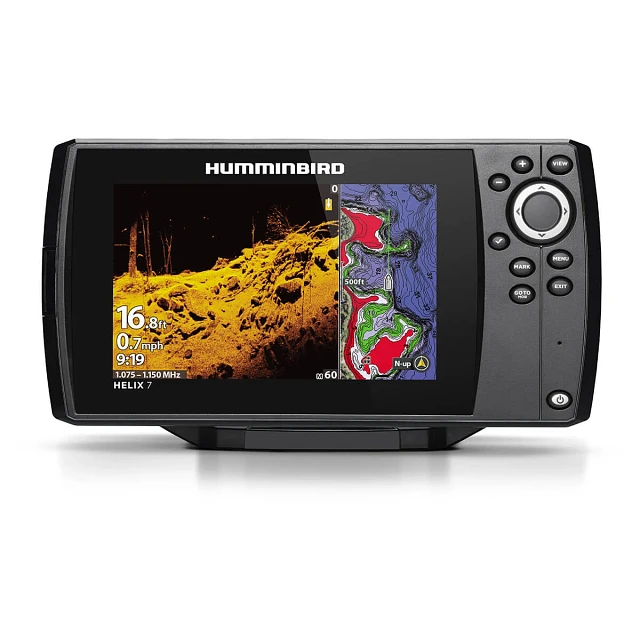

HELIX 7 CHIRP MEGA DI GPS G4
